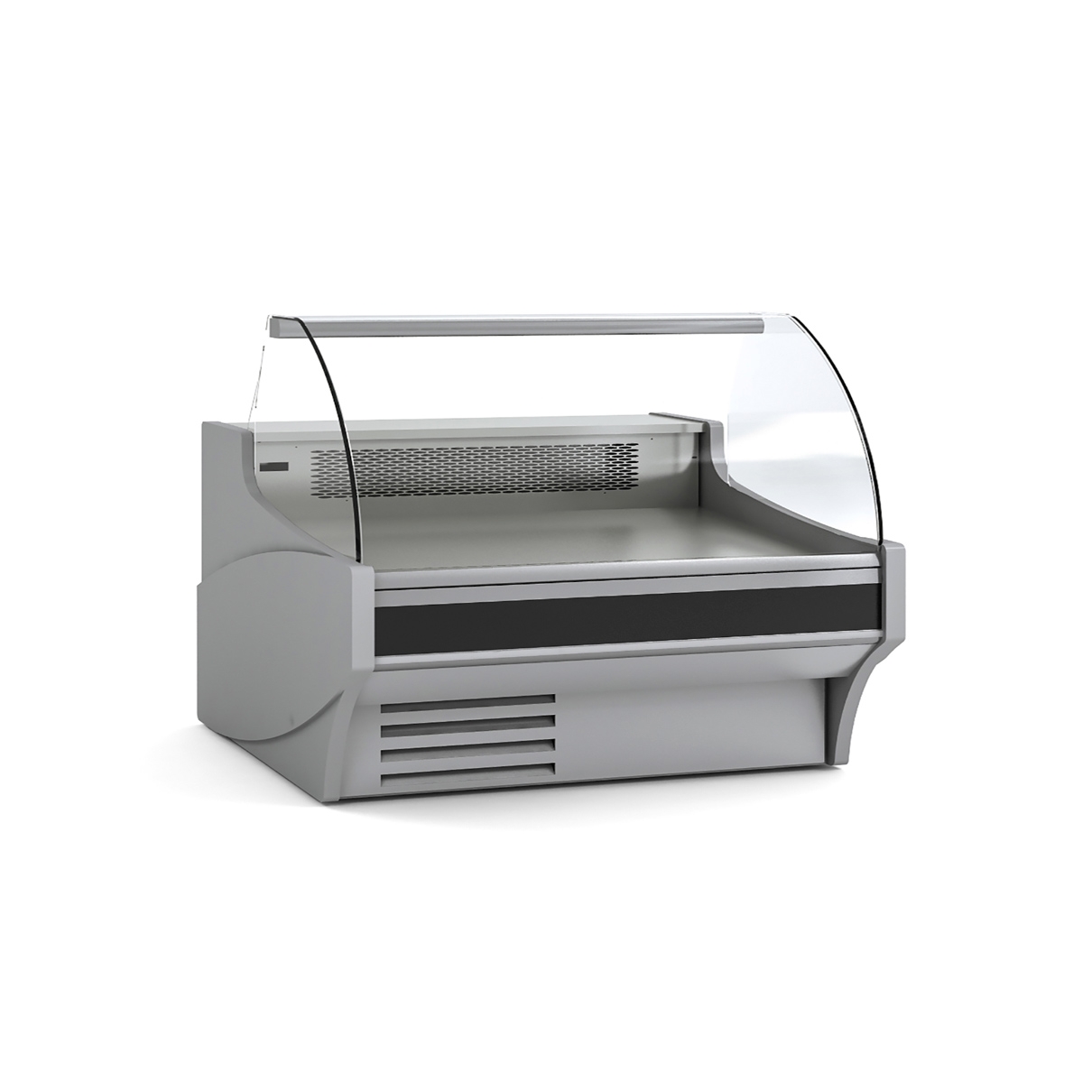

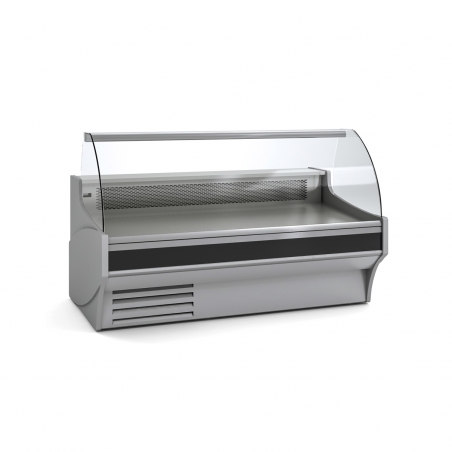

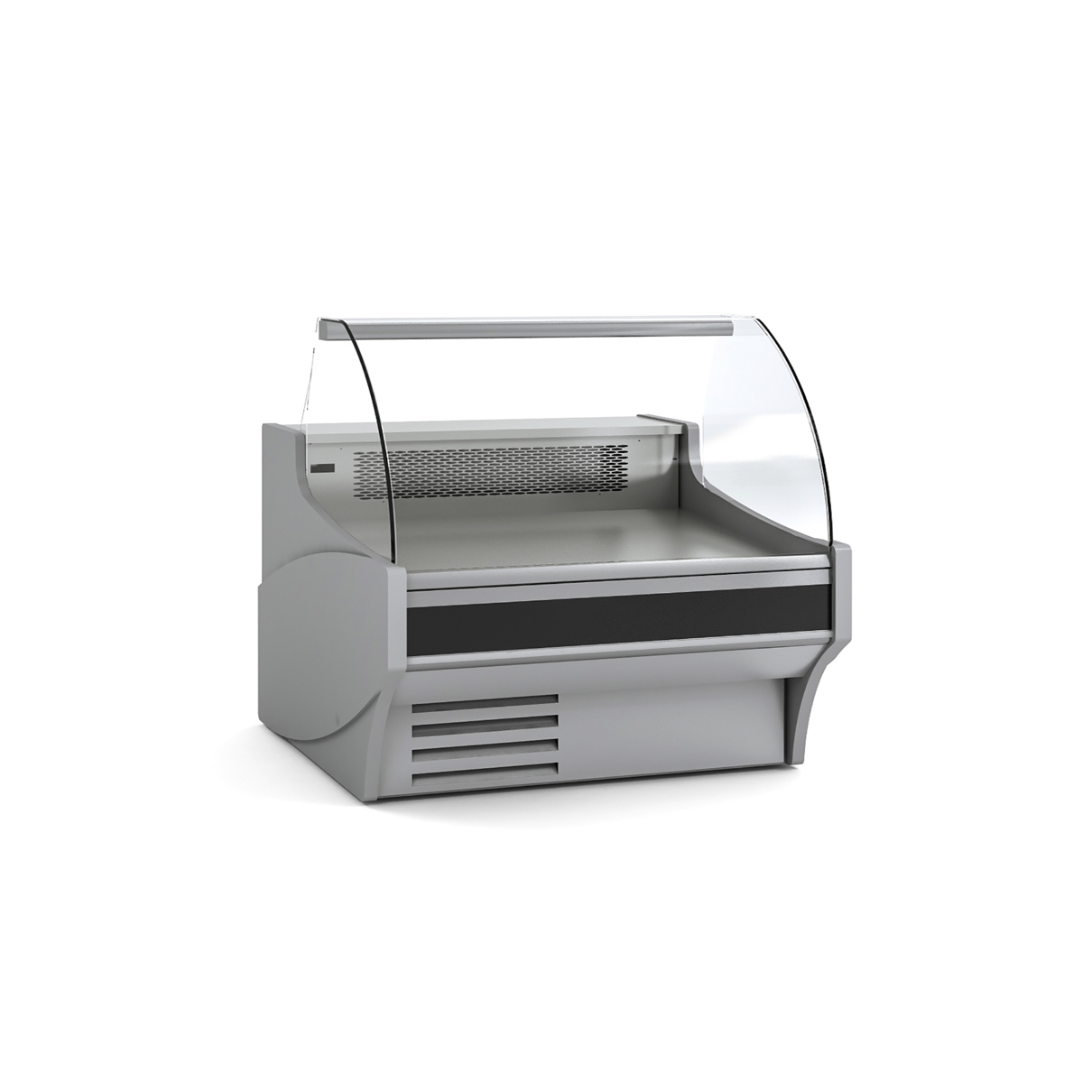

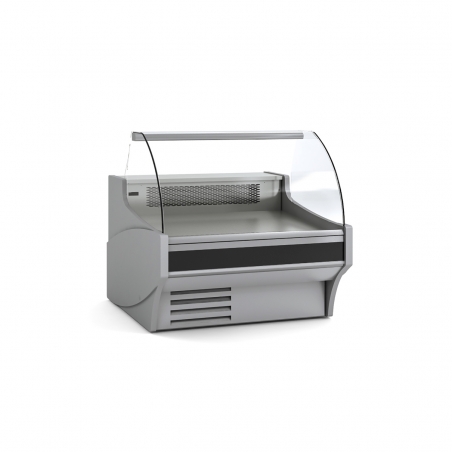

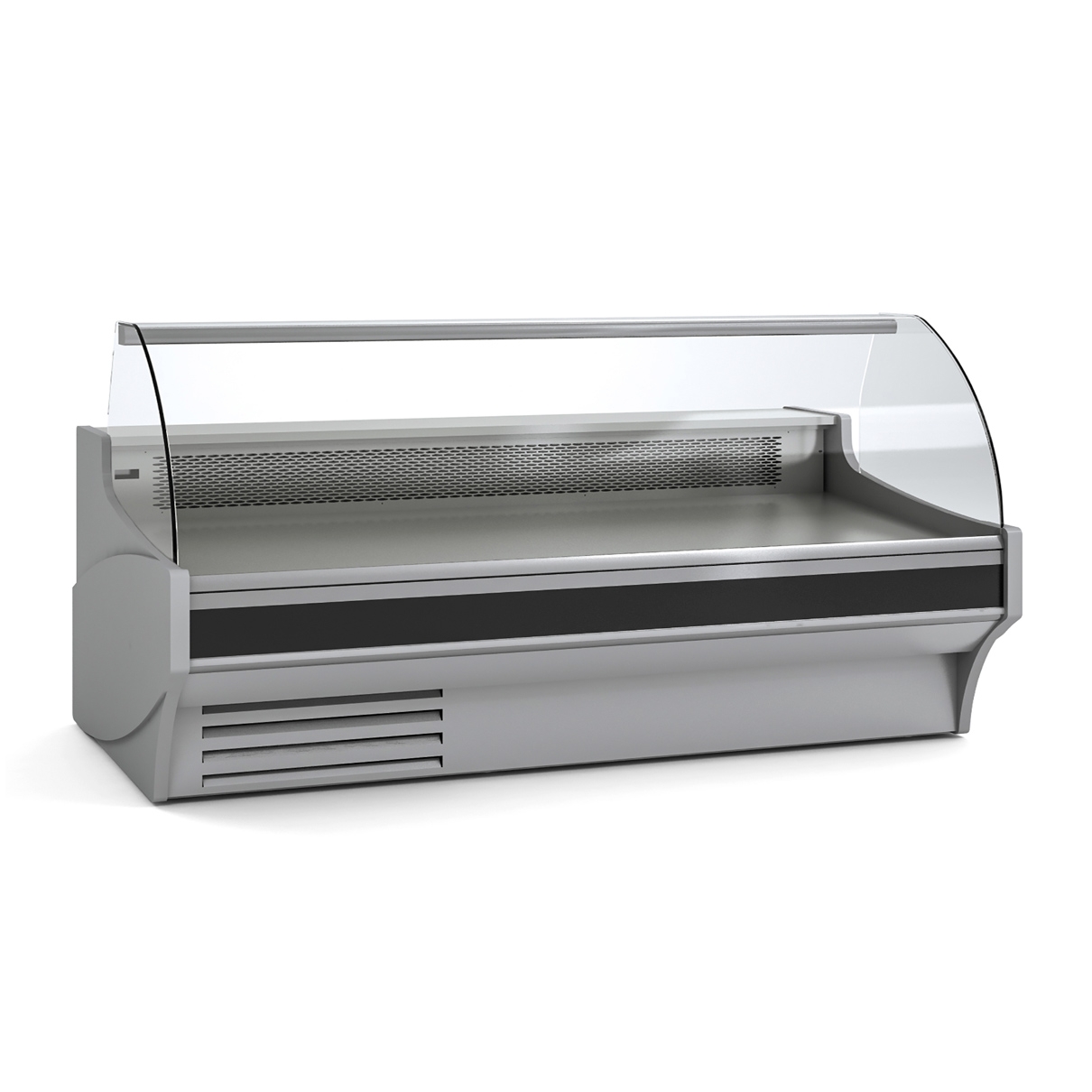

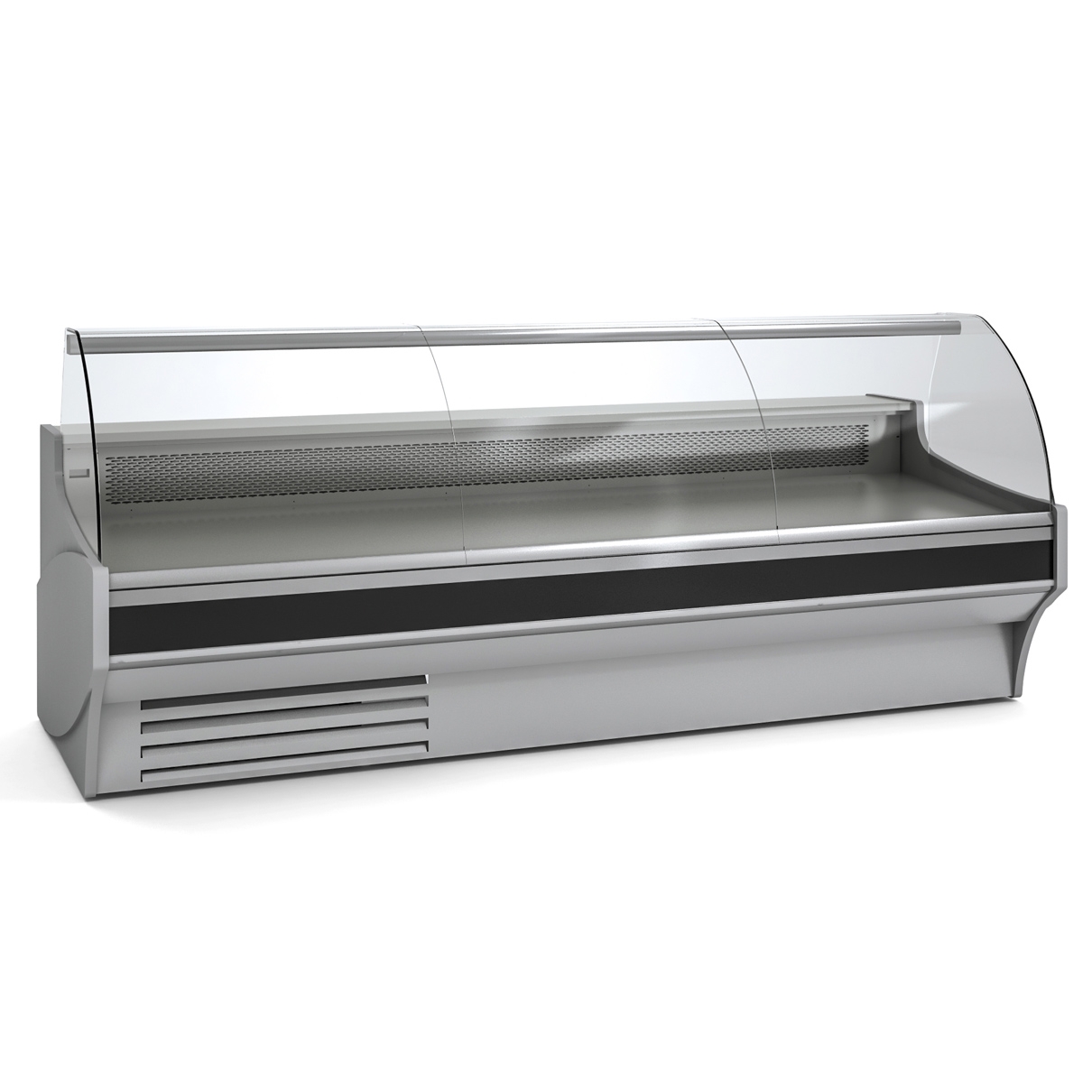

Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF
Modular Refrigerated Display Case VE-10-CC-TF

Modular Refrigerated Display Case VE-10-CC-TF

VE-10-CC-TF

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) Exhibition Area (m2) Exhibition area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) EV chamber (m3) EV camera Doors (Units) Doors (units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
VE-10-13-CC-TF 1305 1235 1100 0.98 1.11 0.5 two 572 969 R-290
VE-10-15-CC-TF 1525 1235 1100 1.16 1.30 0.58 two 781 1089 R-290
VE-10-20-CC-TF 2025 1235 1100 1.56 1.75 0.79 3 949 1199 R-290

VE-10-25-CC-TF

2525 1235 1100 1.97 2.20 0.99 4 1419 1399 R-290
VE-10-30-CC-TF 2995 1235 1100 2.34 2.62 1.25 4 1419 1445 R-290
