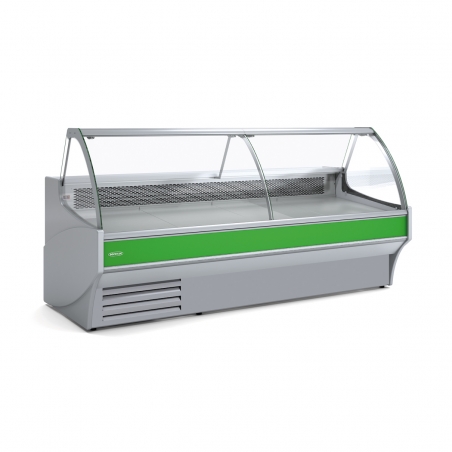

Elevating Glass Refrigerated Display Case without Reserve VES-10E-C-TF
Elevating Glass Refrigerated Display Case...

Elevating Glass Refrigerated Display Case without Reserve VES-10E-C-TF

VES-10E-C-TF

CharcuteríaCarnicería

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Energy Efficiency Class *

* The information regarding the energy class (according to EU Regulations 2019/2018 and 2019/2024) refers to the best configuration available for these models. Any configuration different from the same can vary significantly in the information related to the energy class. Also, this configuration is based on information available at the time of publication of this page. For more information, consult the EPREL European Database of Energy Labeling Products or contact our Commercial Department.

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) Exhibition Area (m2) Exhibition area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) EV chamber (m3) EV camera Doors (units) Doors (Units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
VES-10E-13-C-TF 1305 1265 1100 0.98 0.85 0.5 0 583 926 R-290
VES-10E-15-C-TF 1525 1265 1100 1.16 1.00 0.58 0 796 1066 R-290
VES-10E-20-C-TF 2025 1265 1100 1.56 1.35 0.79 0 1098 1290 R-290

VES-10E-25-C-TF

 2525 1265 1100 1.97 1.70 0.99 0 1312 1334 R-290
VES-10E-30-C-TF 2995 1265 1100 2.34 2.02 1.25 0 1312 1358 R-290

Product Details
