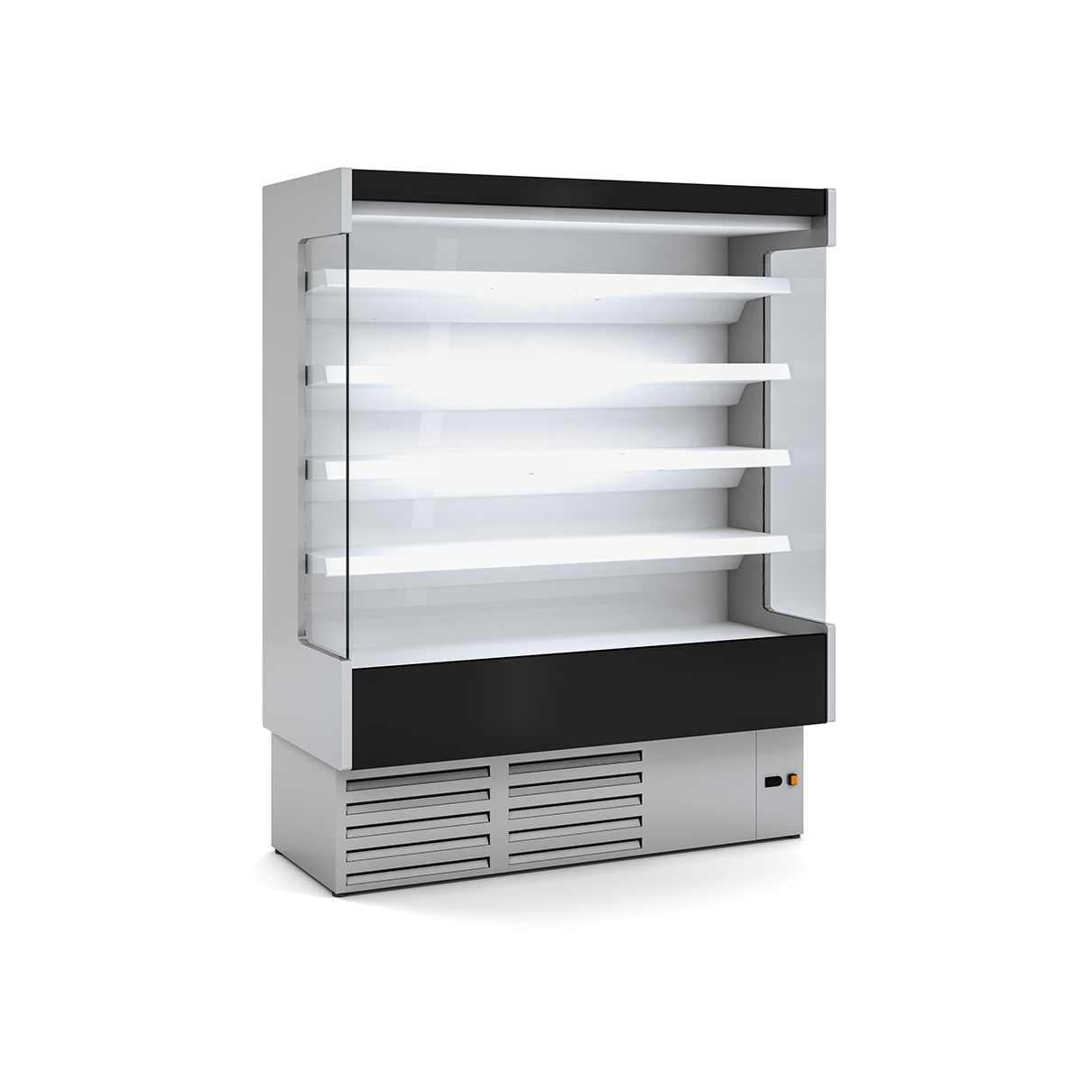

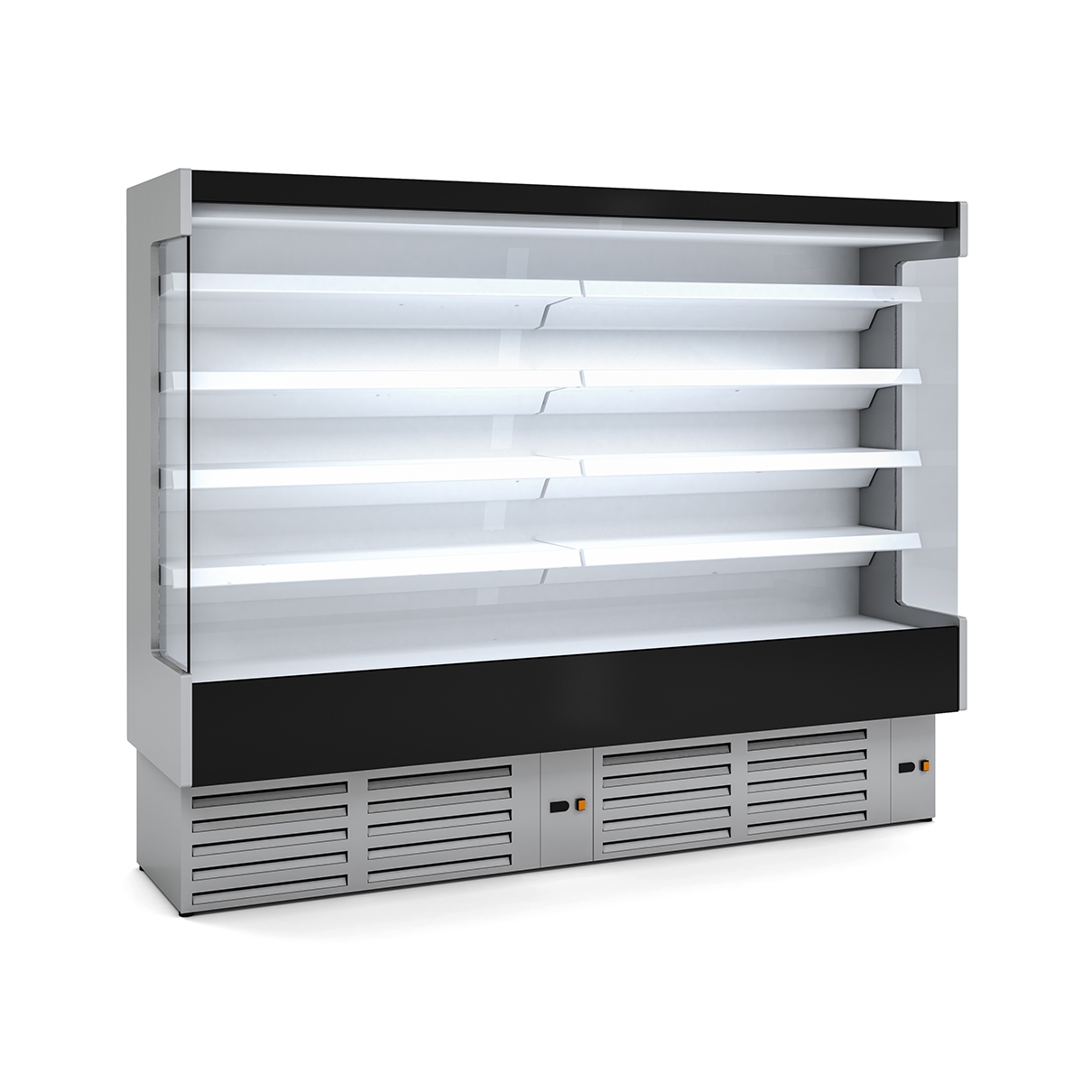

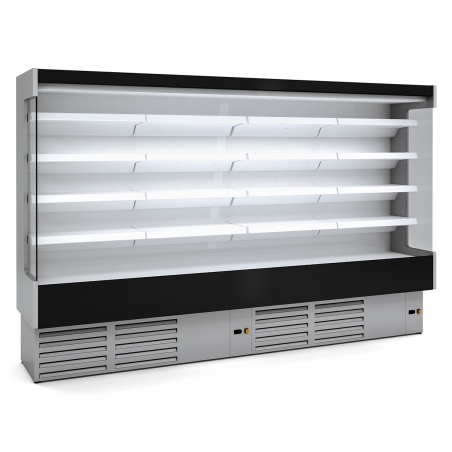

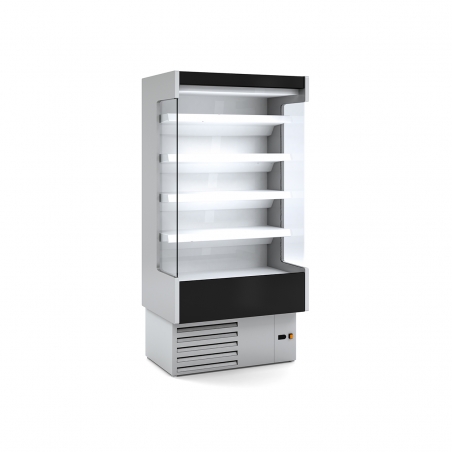

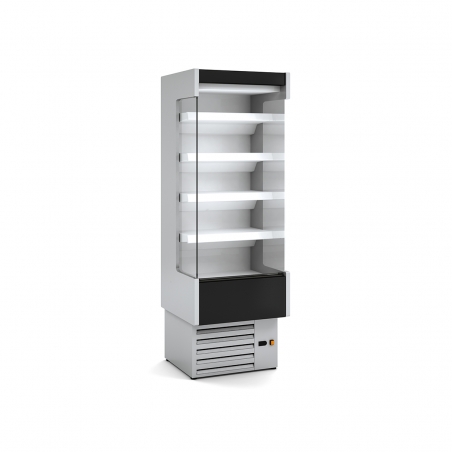

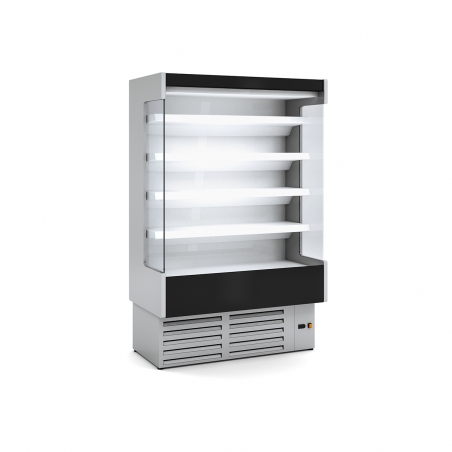

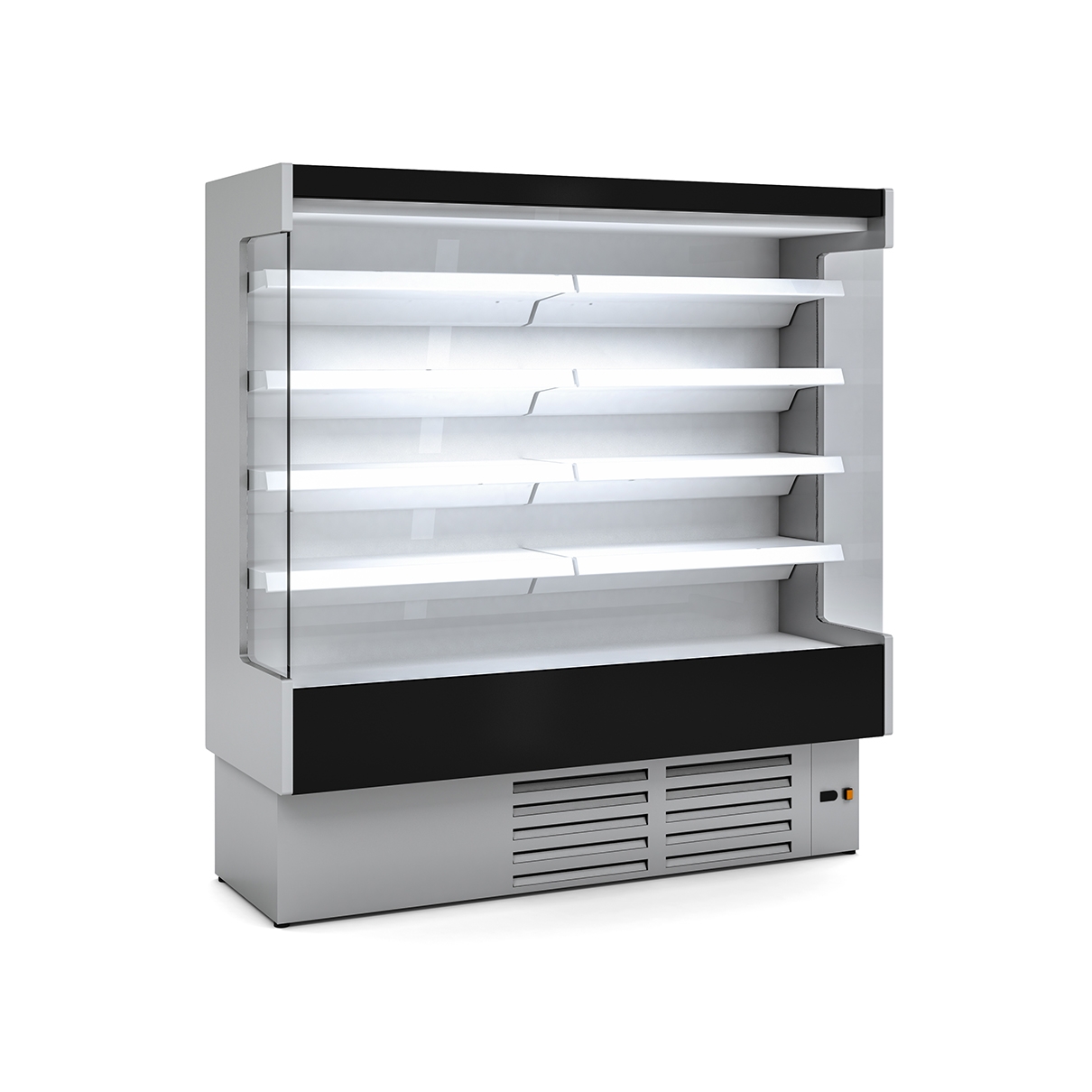

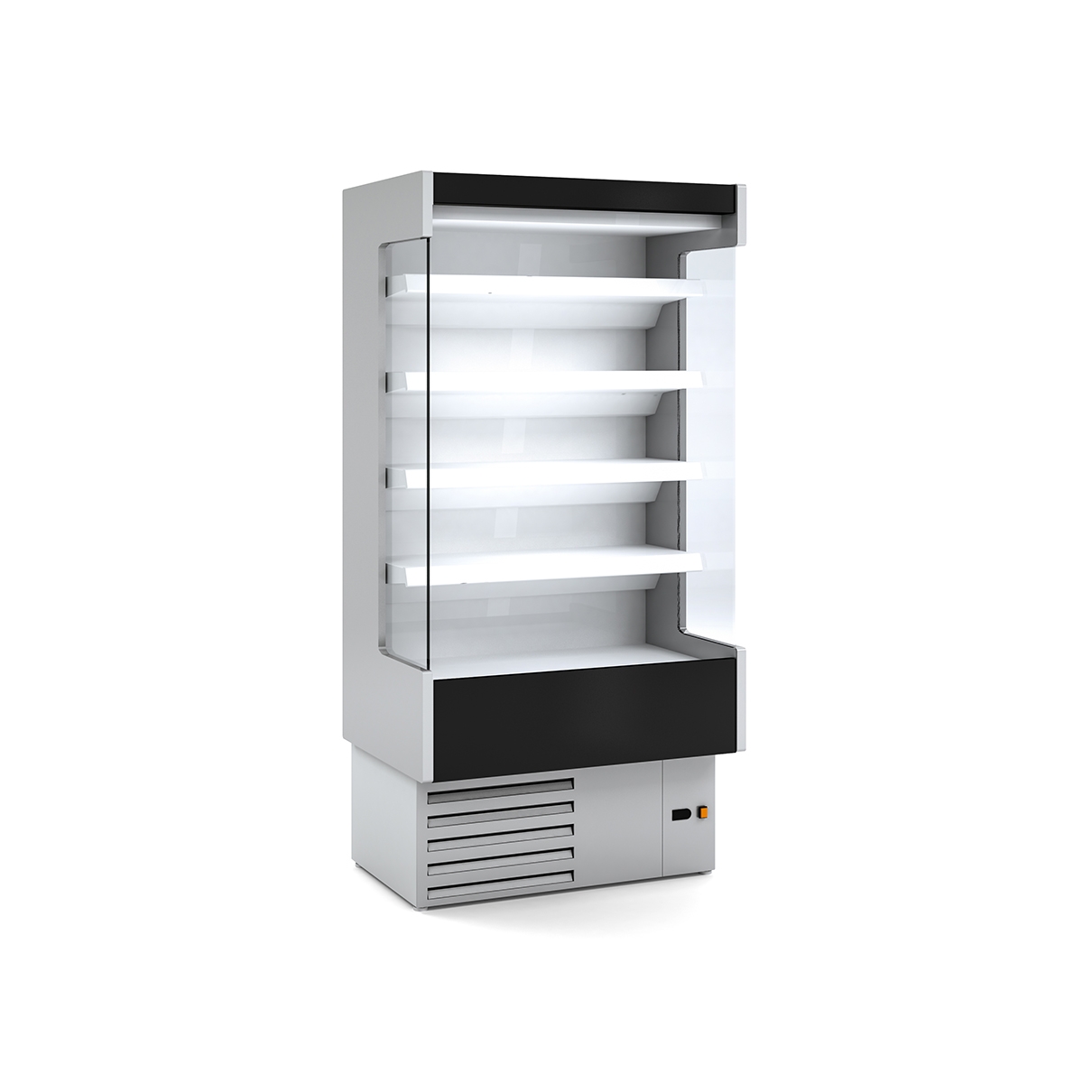

REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2
REFRIGERATED WALL CABINET DS1 M1-M2

REFRIGERATED WALL CABINET DS1 M1-M2

DS1 M1-M2

LácteosCarniceríaCharcuteríaFruterías

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Energy Efficiency Class *

* The information regarding the energy class (according to EU Regulations 2019/2018 and 2019/2024) refers to the best configuration available for these models. Any configuration different from the same can vary significantly in the information related to the energy class. Also, this configuration is based on information available at the time of publication of this page. For more information, consult the EPREL European Database of Energy Labeling Products or contact our Commercial Department.

Description

Model Length (mm) Length (with sides) (mm) Refrigerated Shelves Area (m2) Refrigerated Shelves Area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) Net Volume (l) Net Volume (l) Shelves (Units) Shelves (units) Doors (Units) Doors (units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Nominal Consumption (Kwh/24h) Energy Class Refrigerant Refrigerant
DS1 06 M1-M2 685 1.34 0.83 305 4 - 1192 1382 D R-290
DS1 09 M1-M2 998 2.00 1.24 457 4 - 1528 1713 D R-290
DS1 12 M1-M2 1310 2.68 1.66 610 4 - 1931 1885 D R-290
DS1 15 M1-M2 1623 3.34 2.07 762 8 - 2384 2368 D R-290
DS1 18 M1-M2 1935 4.01 2.49 915 8 - 3056 3026 D R-290
DS1 25 M1-M2 2560 5.35 3.32 1220 8 - 3862 3770 D R-290

Product Details
