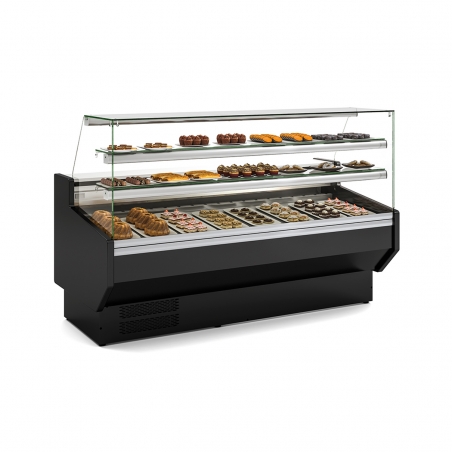

Refrigerated Display Case VEPD-9-RR
Refrigerated Display Case VEPD-9-RR

Refrigerated Display Case VEPD-9-RR

VEPD-9-RR

Pastelerías

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) Exhibition Area (m2) Exhibition area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) EV chamber (m3) EV camera Doors (Units) Doors (Units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
VEPD-9-10 1055 1300 940 0.97 0.75 0.33 1 858 829 R-290
VEPD-9-13 1305 1300 940 1.22 0.94 0.43 two 968 891 R-290
VEPD-9-15 1525 1300 940 1.44 1.12 0.49 two 781 1045 R-290
VEPD-9-20 2025 1300 940 1.94 1.50 0.67 3 949 1133 R-290
VEPD-9-25 2525 1300 940 2.44 1.89 0.84 4 1419 1333 R-290

Product Details
