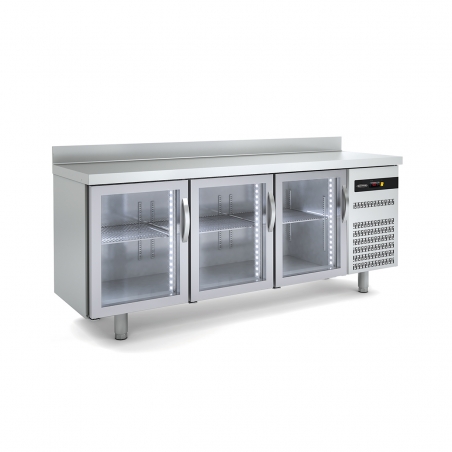

SNACK Refrigerated Table MVD
SNACK Refrigerated Table MVD

SNACK Refrigerated Table MVD

MVD

Restaurantes

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) RangeRange shelves shelves Capacity (l) Capacity L Voltage Voltage Refrigerant Refrigerant Cooling Power (W) Cooling Power W Rated Consumption Rated Consumption W SCC 2015/1094EN16825

climatic class

2015/1094EN16825

MVD-150 1495 850 600 -2ºC+8ºC two 245 230V-50Hz R-290 502 244 - 5 (40ºC 40%)
MVD-200 2020 850 600 -2ºC+8ºC 3 380 230V-50Hz R-290 502 251 - 5 (40ºC 40%)
MVD-250 2545 850 600 -2ºC+8ºC 4 516 230V-50Hz R-290 845 397 - 5 (40ºC 40%)

Product Details
