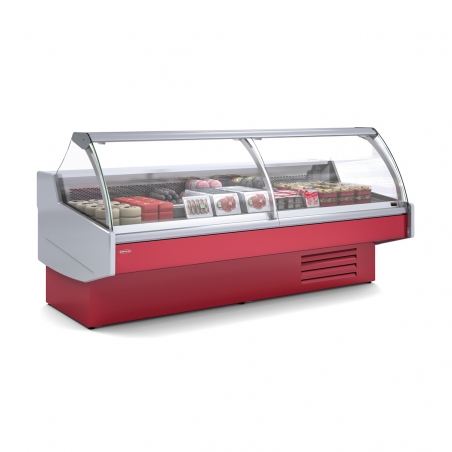

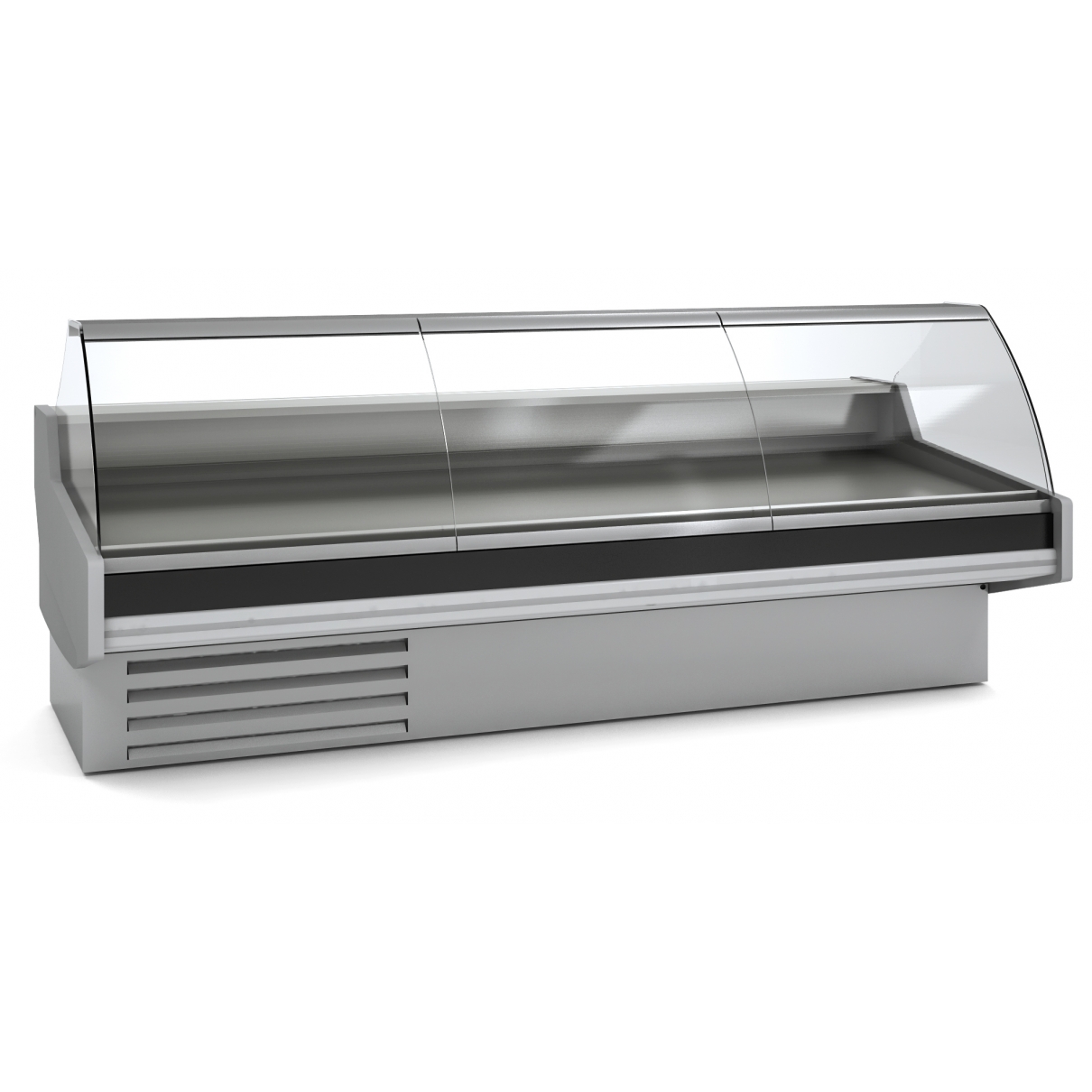

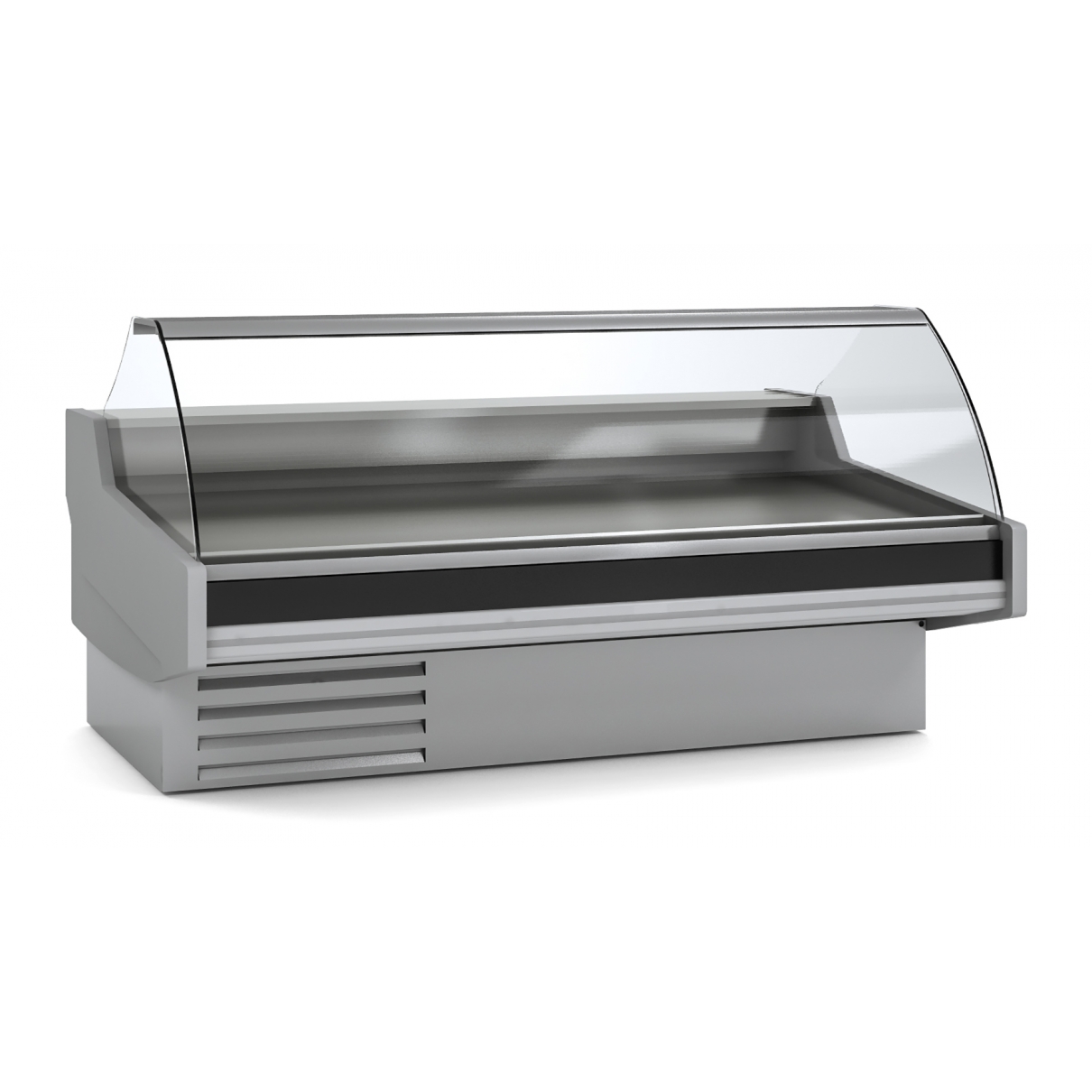

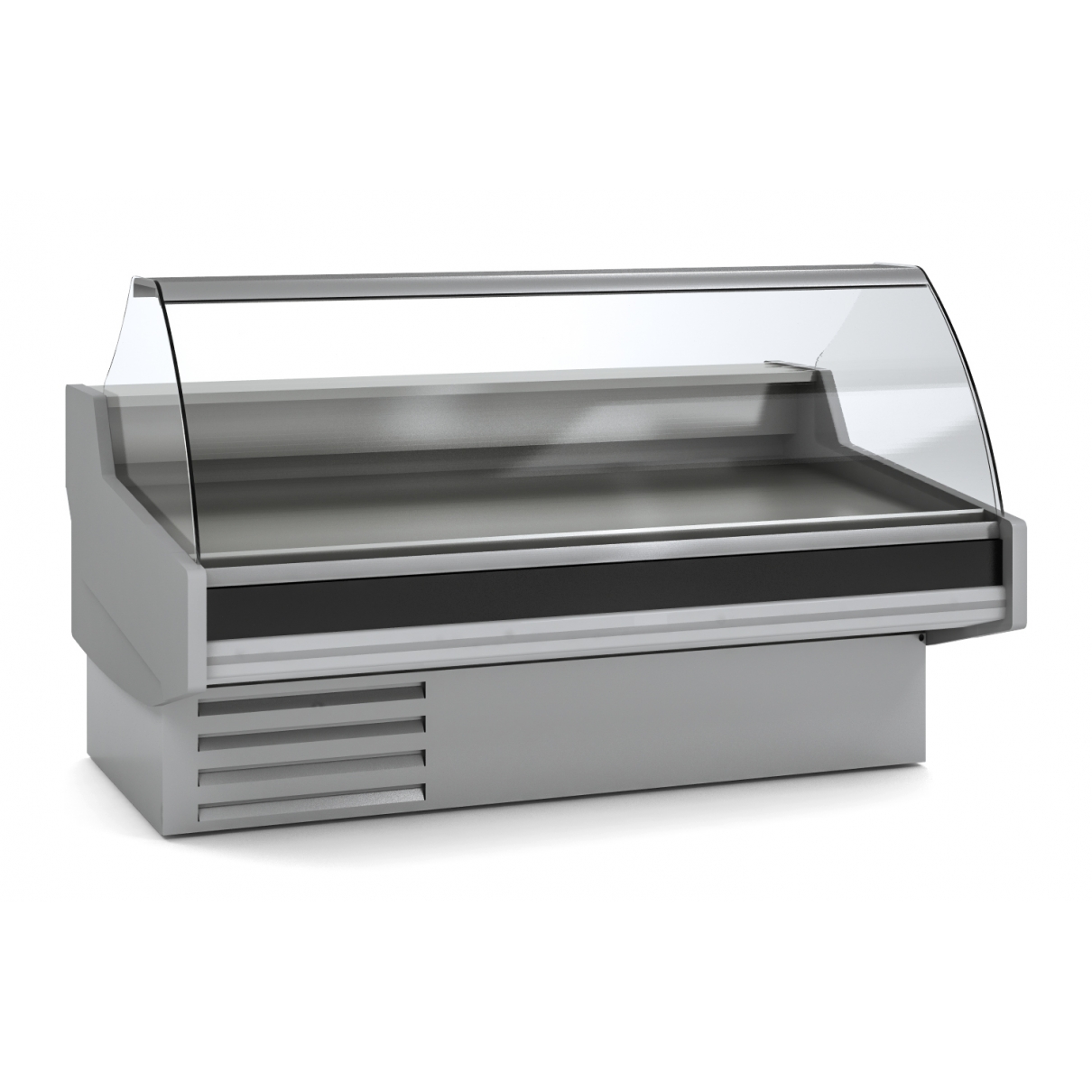

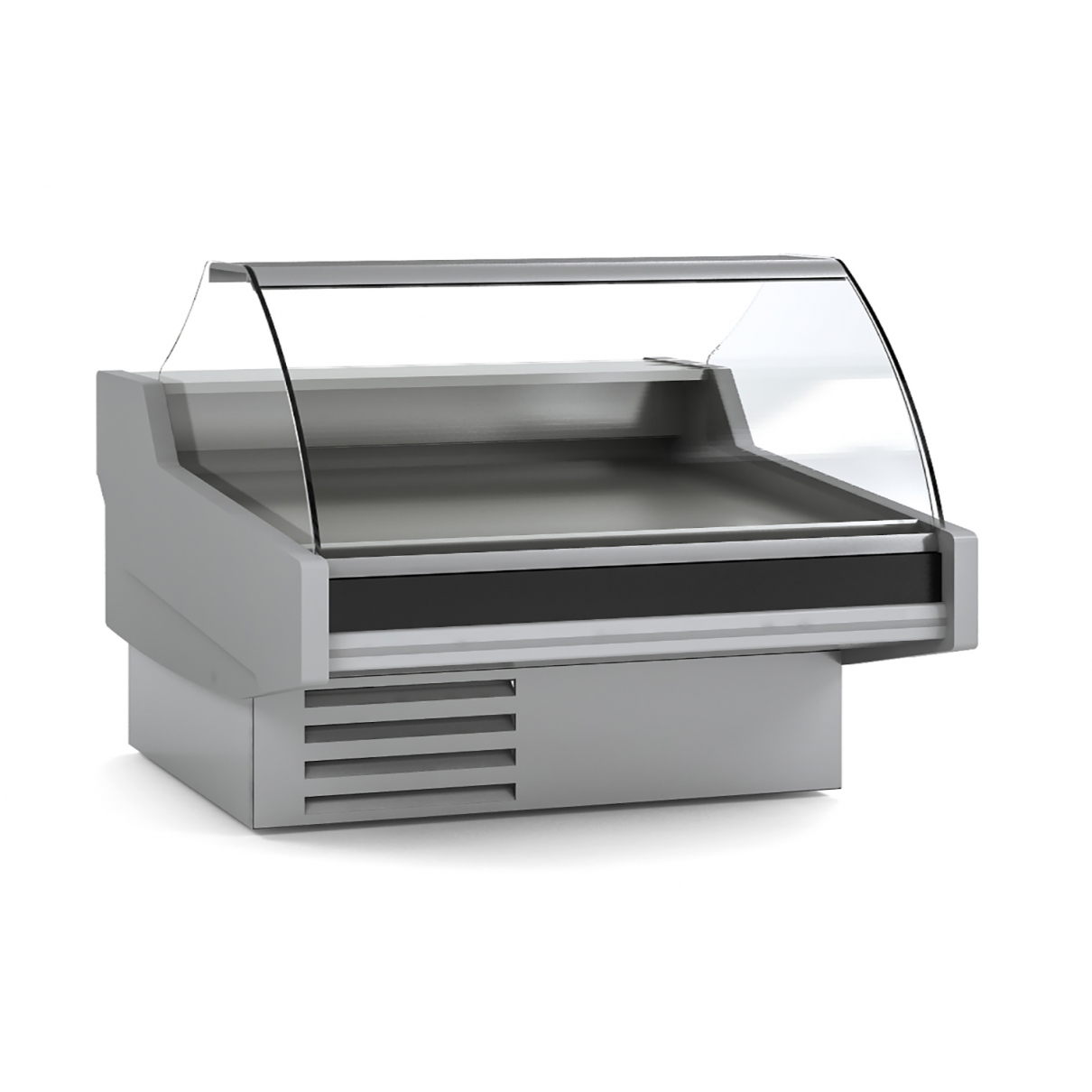

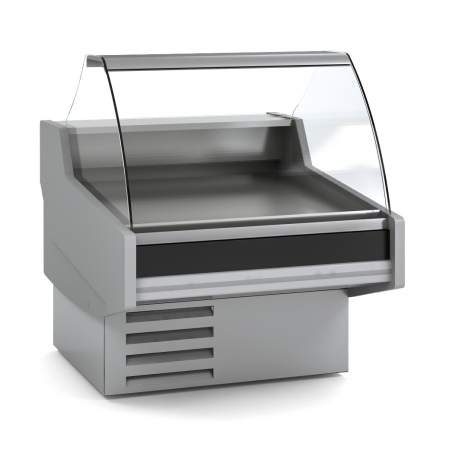

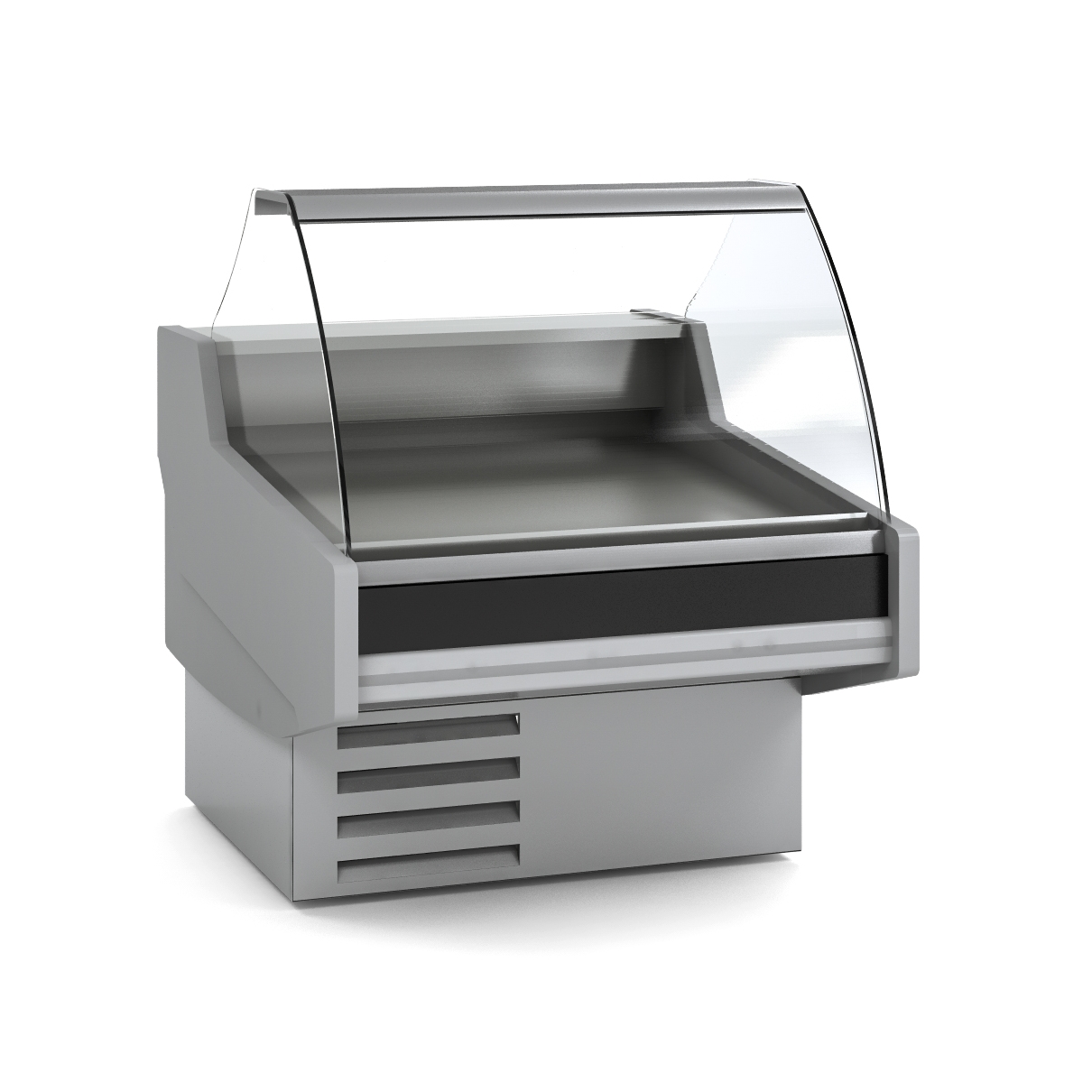

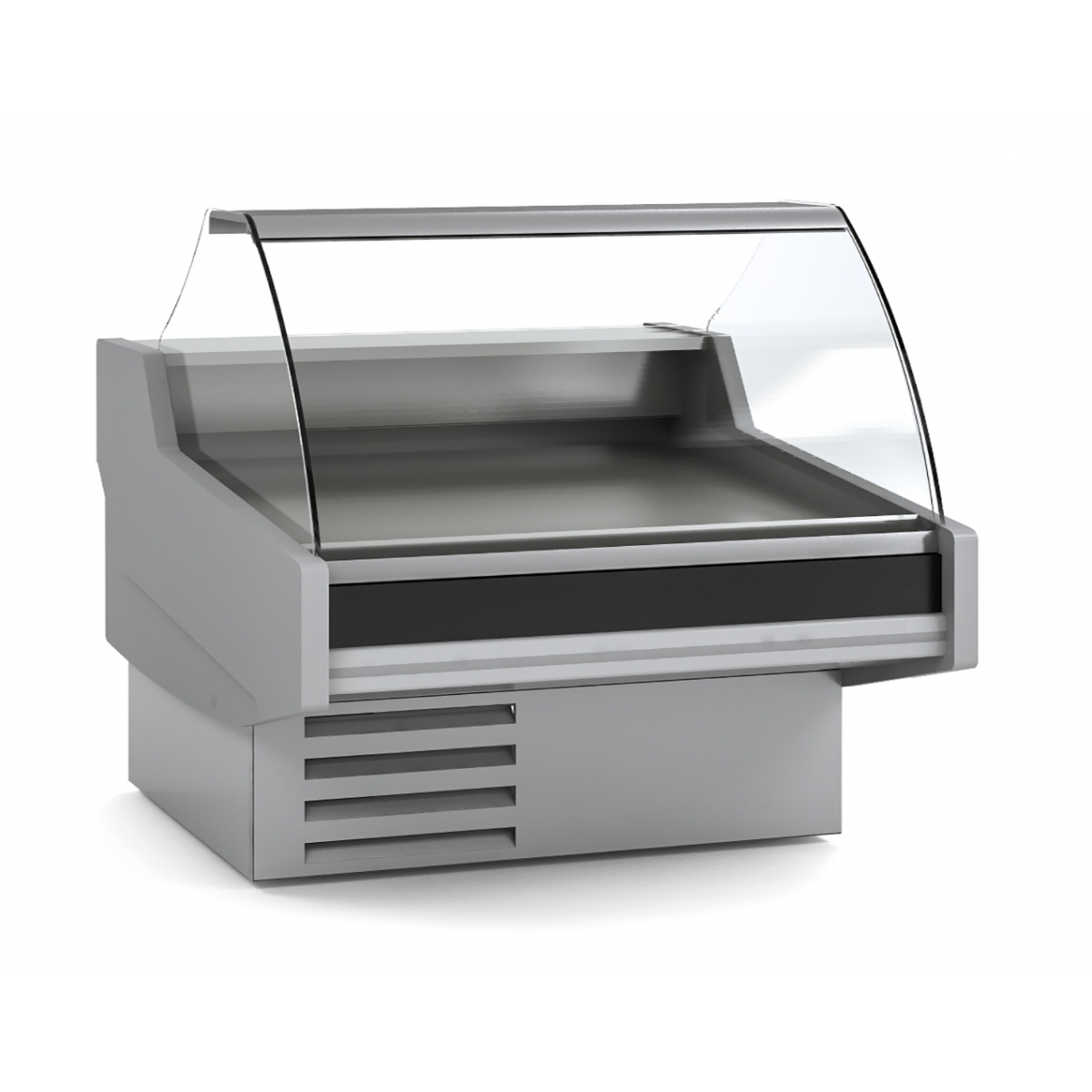

Supermarket Modular Refrigerated Display Case without Reserve VES-12-C-TF

VES-12-C-TF

CharcuteríaCarnicería

Energy Efficiency Class *

* The information regarding the energy class (according to EU Regulations 2019/2018 and 2019/2024) refers to the best configuration available for these models. Any configuration different from the same can vary significantly in the information related to the energy class. Also, this configuration is based on information available at the time of publication of this page. For more information, consult the EPREL European Database of Energy Labeling Products or contact our Commercial Department.

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) Exhibition Area (m2) Exhibition area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) EV chamber (m3) EV camera Doors (Units) Doors (Units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
VES-12-10-C-TF 1055 1235 1215 0.83 0.71 0.4 0 572 952 R-290
VES-12-13-C-TF 1305 1235 1215 1.04 0.88 0.52 0 781 1095 R-290
VES-12-15-C-TF 1525 1235 1215 1.23 1.05 0.6 0 949 1175 R-290
VES-12-20-C-TF 2025 1235 1215 1.65 1.40 0.81 0 1419 1390 R-290
VES-12-25-C-TF 2525 1235 1215 2.08 1.77 1.1 0 1528 1613 R-290
VES-12-30-C-TF 2995 1235 1215 2.48 2.11 1.28 0 1931 1904 R-290

Product Details
